1976 Mercedes Air Suspension Wiring Repair Safety Installation
1976 Mercedes air suspension wiring repair with Viair wiring harness rebuild
Bad wiring on an old air suspension setup is the kind of surprise nobody wants to find. This 1976 Mercedes air suspension wiring repair started as a wiring fix and safety check, but it quickly turned into a full strip-out and rebuild after we uncovered a seriously poor DIY installation on the Viair system.
Sometimes a “small wiring job” really is small, and sometimes it absolutely is not. In this case, the existing wiring had to be completely removed, then replaced with a new professionally made wiring harness for the Viair air suspension setup, leaving the car with a much cleaner, safer, and more dependable result.
Project overview
The car came in for an air suspension wiring repair and a safety check. At first glance, it looked like a tidy-up job, but once we inspected the existing setup properly, it was clear the wiring quality was far below what it needed to be.
Because of that, a partial repair would have made little sense. Instead, we removed the unsafe DIY wiring and rebuilt the electrical side of the Viair setup properly with a fresh harness made and fitted for the job.
What we found

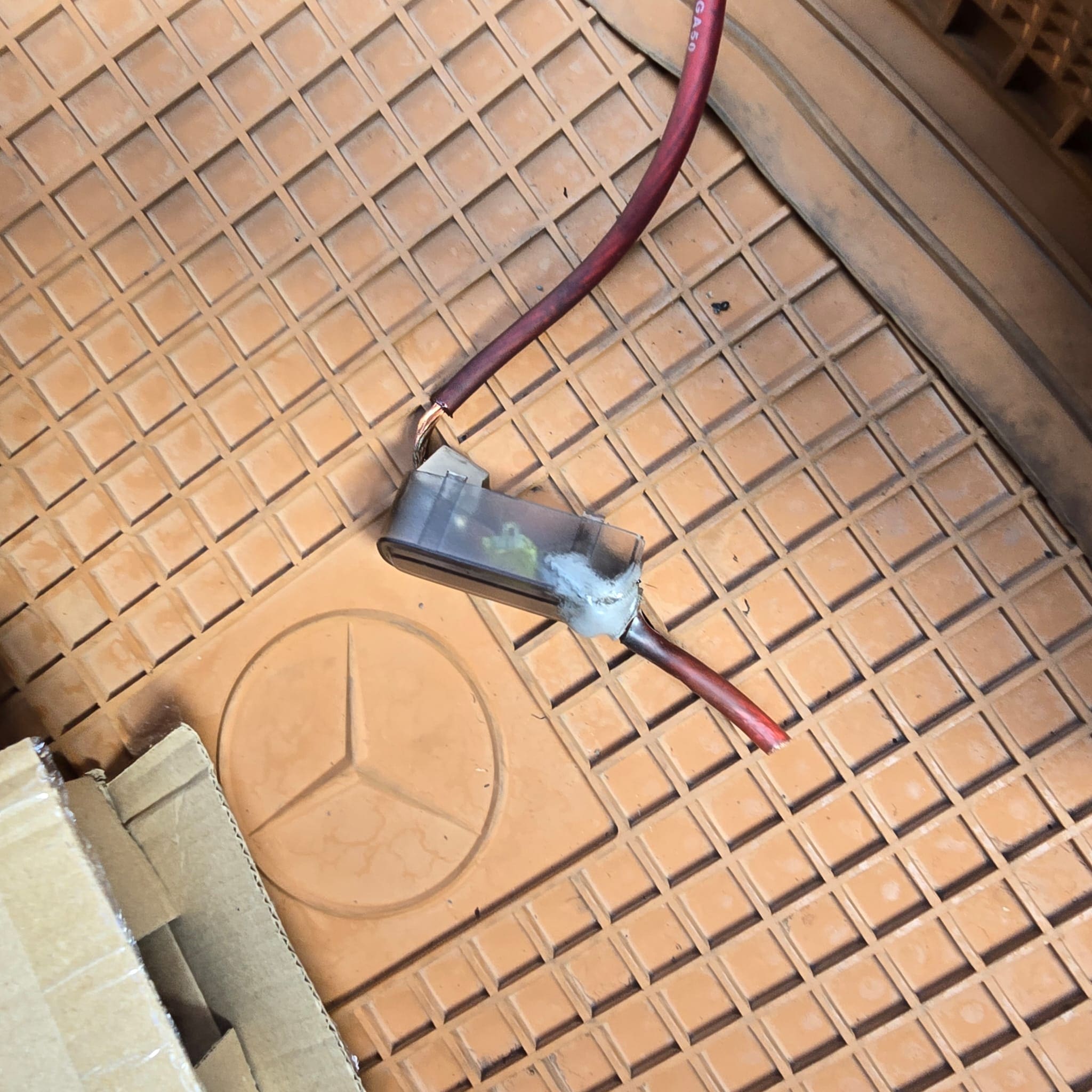

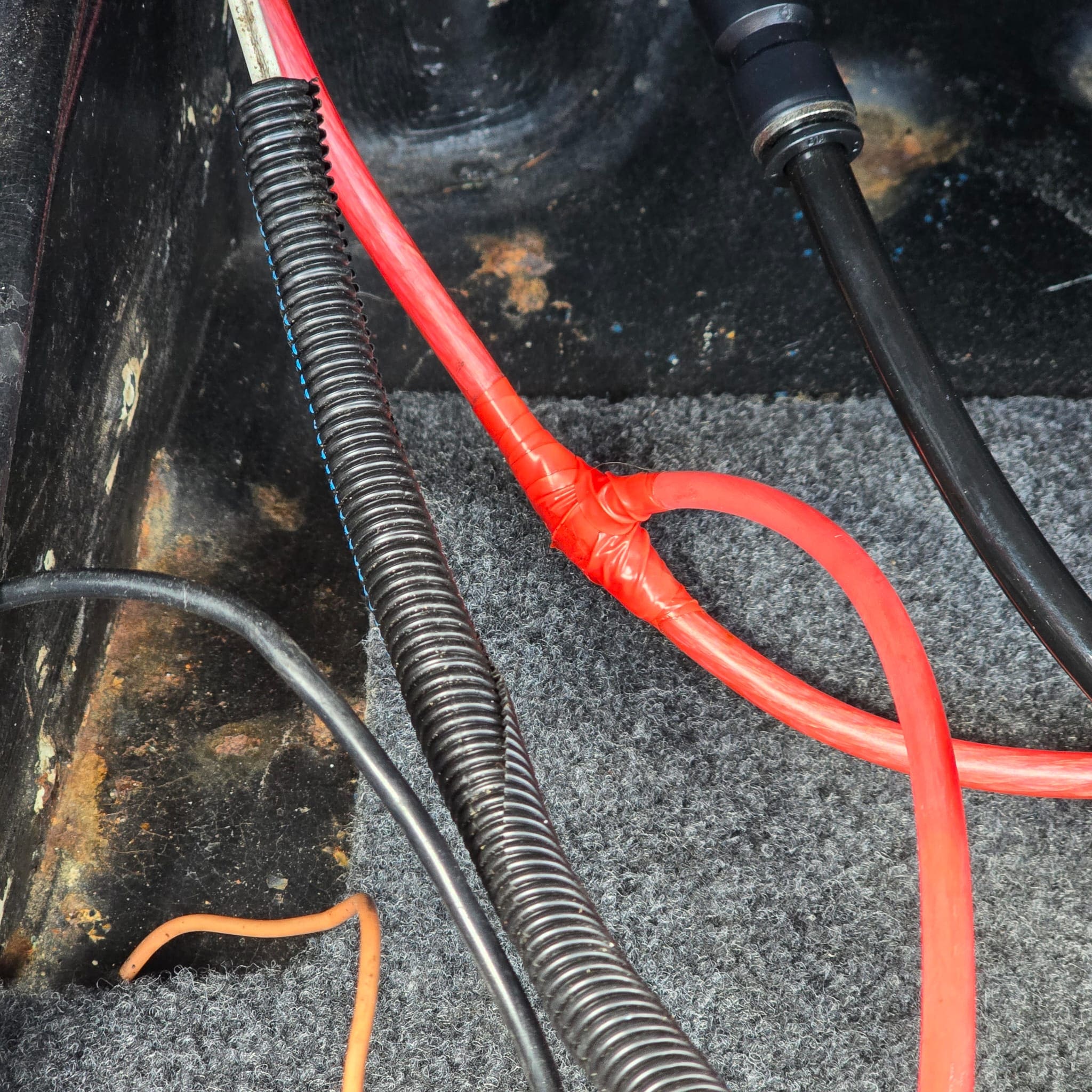

This was a 1976 Mercedes fitted with a Viair air suspension setup, and the main issue was the condition of the existing wiring. Put simply, it was one of the roughest DIY air suspension wiring installs we have seen.
That matters because air suspension wiring is not just about making components switch on. If the wiring is badly routed, poorly joined, or generally unsafe, the whole setup becomes harder to trust and harder to diagnose later.
- 1976 Mercedes in for wiring repair and safety inspection
- Viair air suspension system already fitted
- Existing DIY wiring judged unsafe
- Original wiring removed completely
- New professionally made wiring harness installed
Repair process
Once we confirmed the condition of the old wiring, the sensible route was to start again rather than try to rescue a bad installation. That approach takes longer, but it gives the system a proper foundation.
- Checked the air suspension wiring as part of the requested repair and safety review.
- Inspected the existing DIY installation and confirmed it needed full removal.

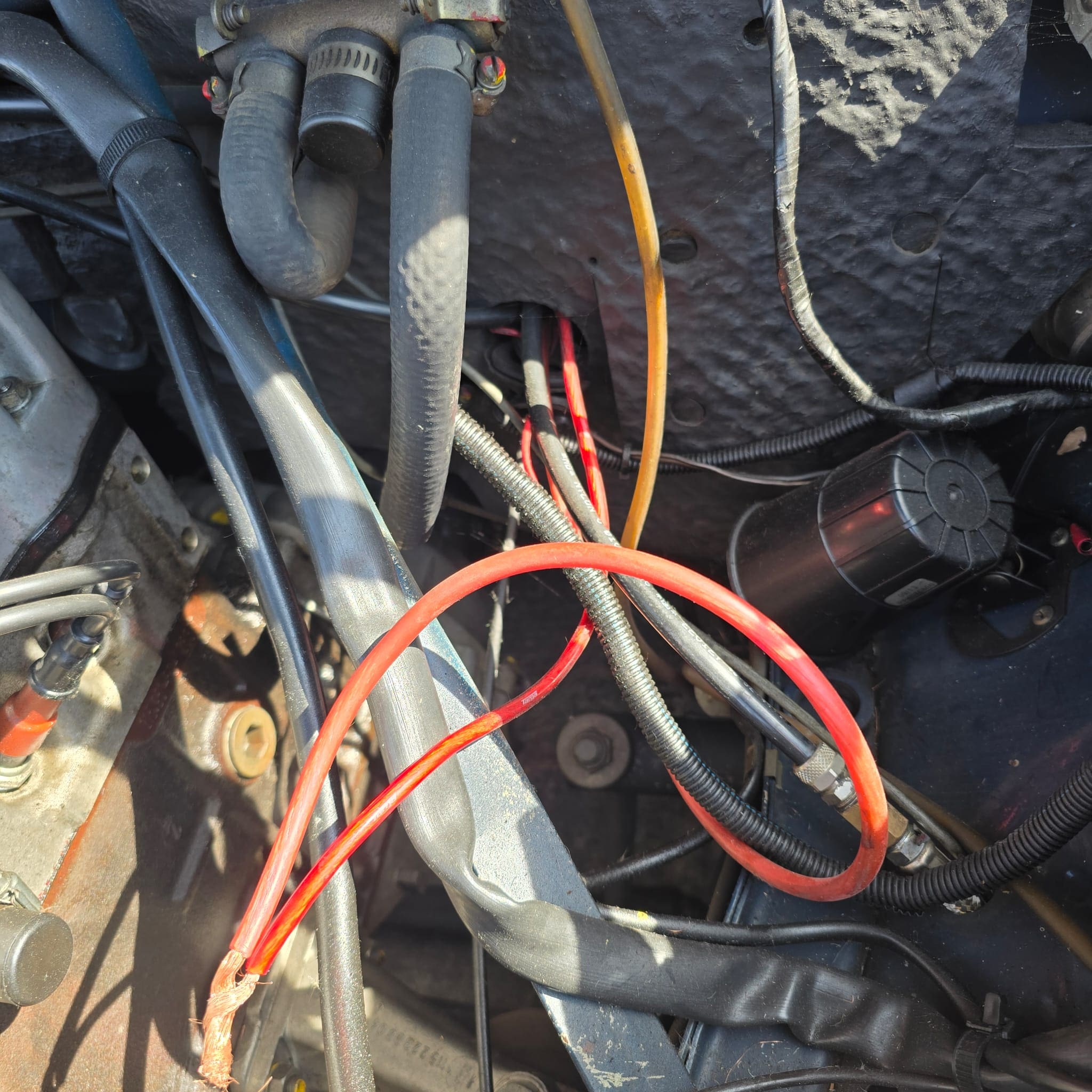

- Stripped out the unsafe wiring from the Viair setup.
- Built a new wiring harness for the air suspension system.

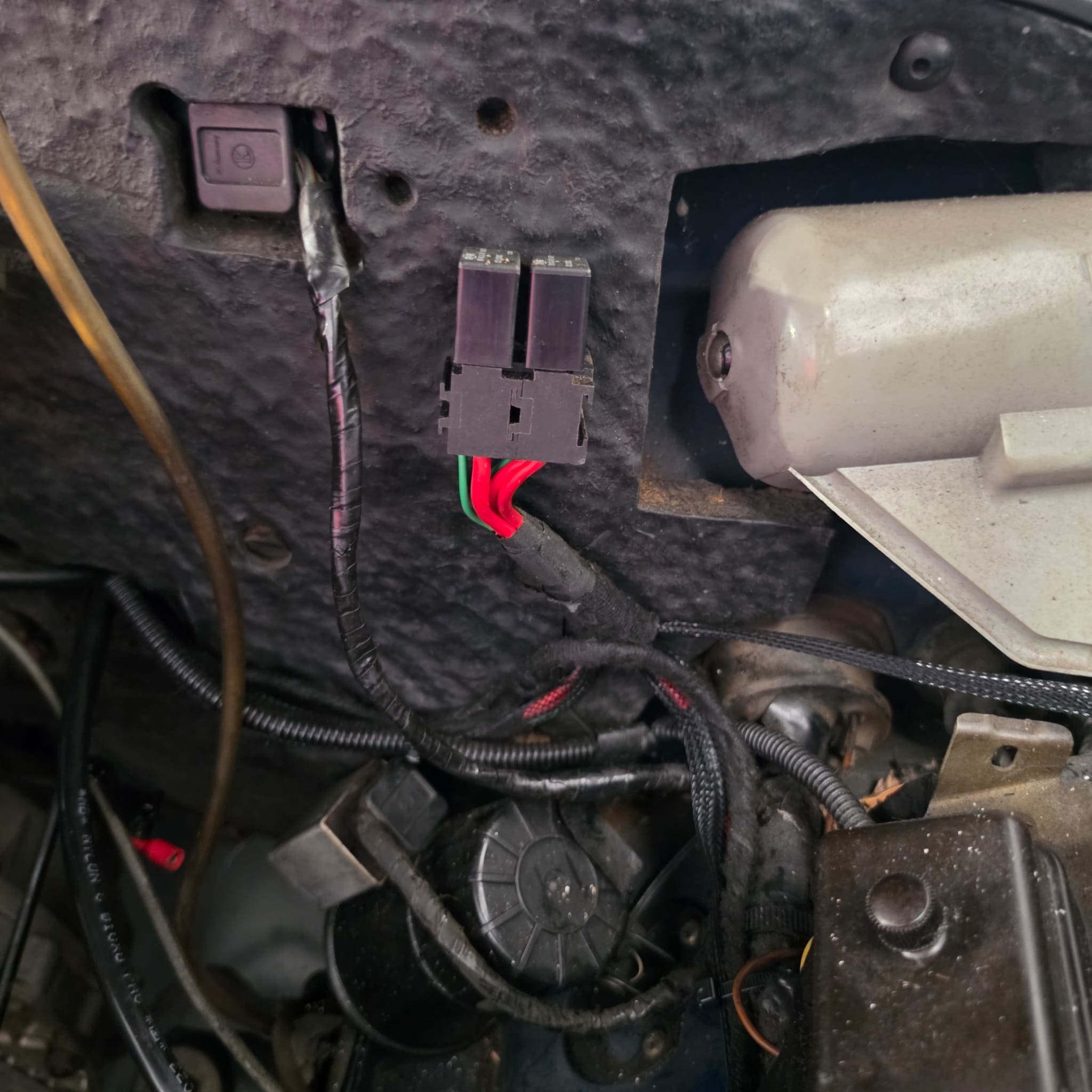

- Fitted the new harness correctly for a cleaner installation.
- Carried out a final check of the completed wiring layout and overall safety of the setup.
Good wiring work is often the difference between a vehicle that feels sorted and one that always has a question mark hanging over it. So while the air suspension parts matter, the quality of the wiring behind them matters just as much.
Results and checks
The finished result was a big improvement over what arrived in the workshop. The unsafe DIY wiring was gone, the new harness was fitted properly, and the overall installation looked far cleaner.
What we verified: the old wiring had been fully removed, the new Viair wiring harness had been made and installed correctly, and the setup presented far better from both a safety and reliability point of view. That is the real value of doing a 1976 Mercedes air suspension wiring repair properly instead of trying to patch around bad previous work.
Quick FAQ
Q: Can bad air suspension wiring always be repaired without replacing it?
A: Not always. On this car, the existing DIY wiring was poor enough that complete removal was the right option.
Q: What parts were used on this job?
A: The key replacement item was a new professionally made wiring harness for the Viair air suspension setup.
Q: Was this just a fault-finding job?
A: It started as a wiring repair and safety check, but the condition of the old installation turned it into a much larger repair.
Q: Do warning lights or coding apply to this project?
A: No coding details were part of the source job information, so the focus here was on wiring quality, safety, and proper installation.
Q: What should I send when asking about a similar repair?
A: Send the vehicle model, year, details of the air suspension setup fitted, and clear photos of the current wiring if possible.
