Audi TT Rear Camera Retrofit Highline Wiring To 5F
Audi TT Mk2 8S Highline Rear View Camera Retrofit

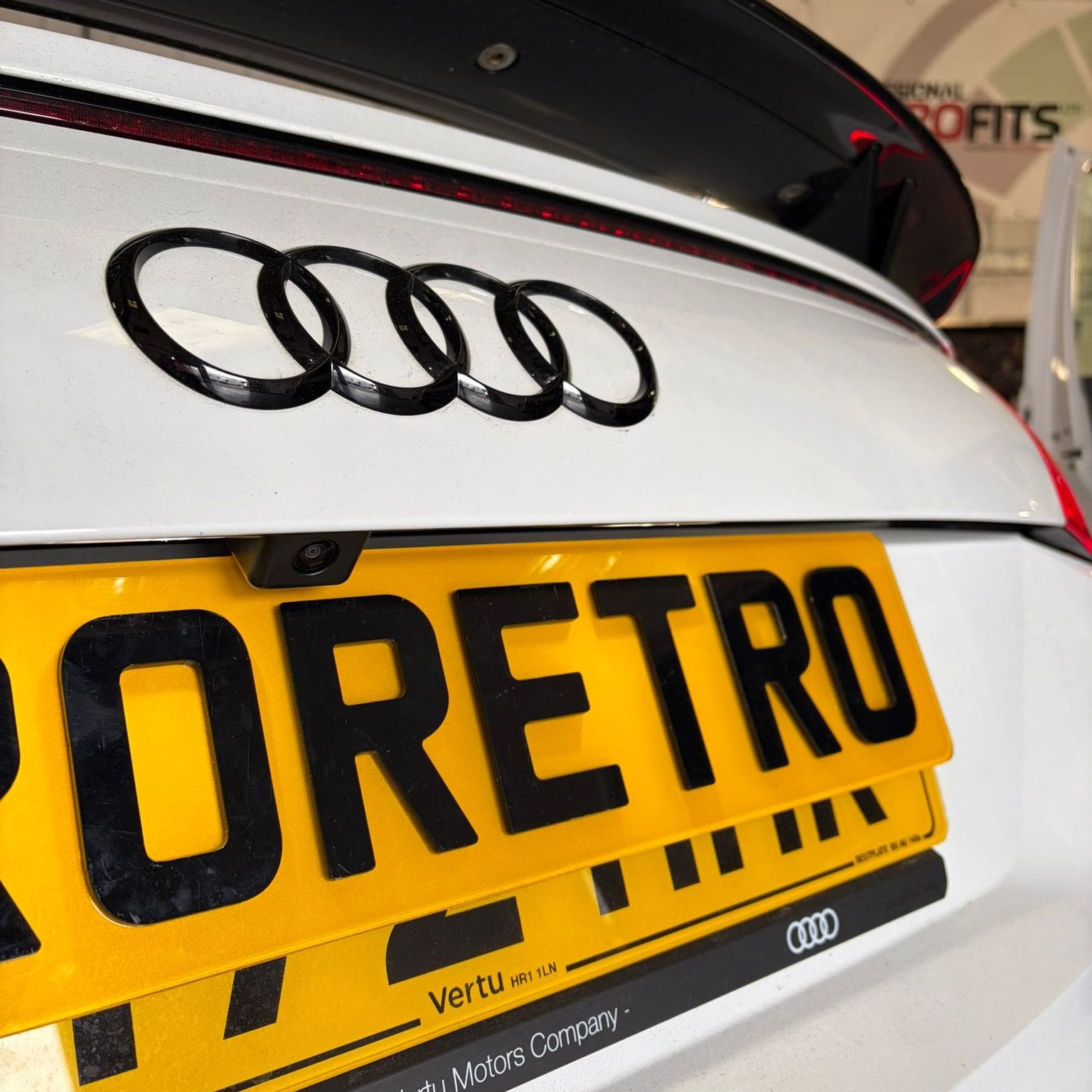

Reverse shouldn’t feel like guesswork, especially in a clean-looking coupe. This Audi TT rear camera retrofit added a Highline rear view camera to an Audi TT Mk2 8S, with the wiring routed properly to the 5F unit and coding completed at the end for a fully integrated finish.

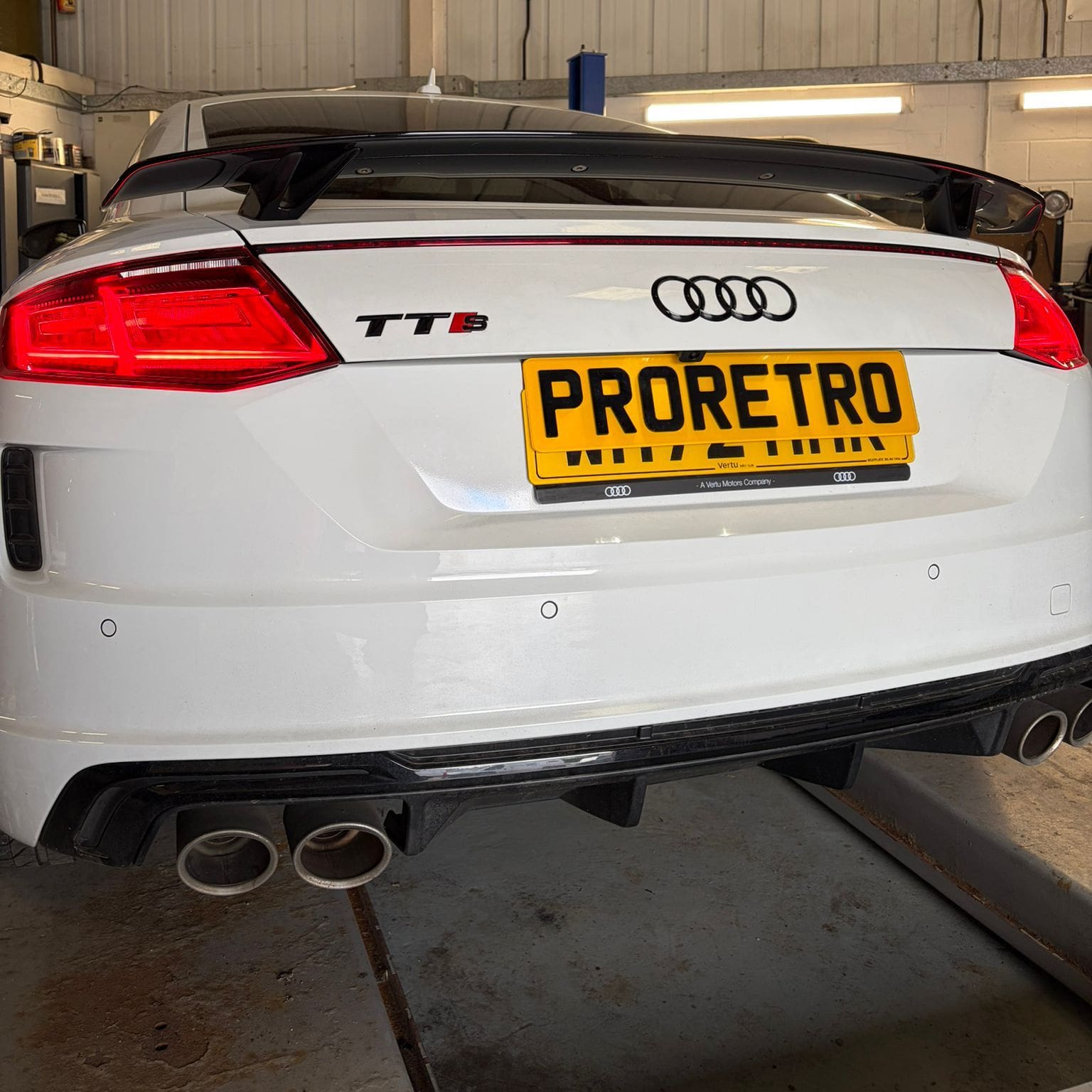

This one was a beautiful white TT with a TTS badge, and it genuinely deserved the upgrade. Ever tried backing into a tight spot with limited rear visibility and thought, “Yep… I’m getting out to check”? This solves that in the most OEM-feeling way.
What we set out to do
The goal was straightforward: fit a Highline rear view camera and make it behave like it belongs there. That means correct wiring routes, correct module integration, and no shortcuts hidden behind trim.
Because this is a VAG platform job, we approached it the way we approach all vag retrofits: clean disassembly, protected wiring runs, and coding only once the physical side is finished.
Access and strip-down
This retrofit took us around 4 hours end-to-end. A big part of that time is simply gaining access the right way so the wiring can be run neatly and safely.

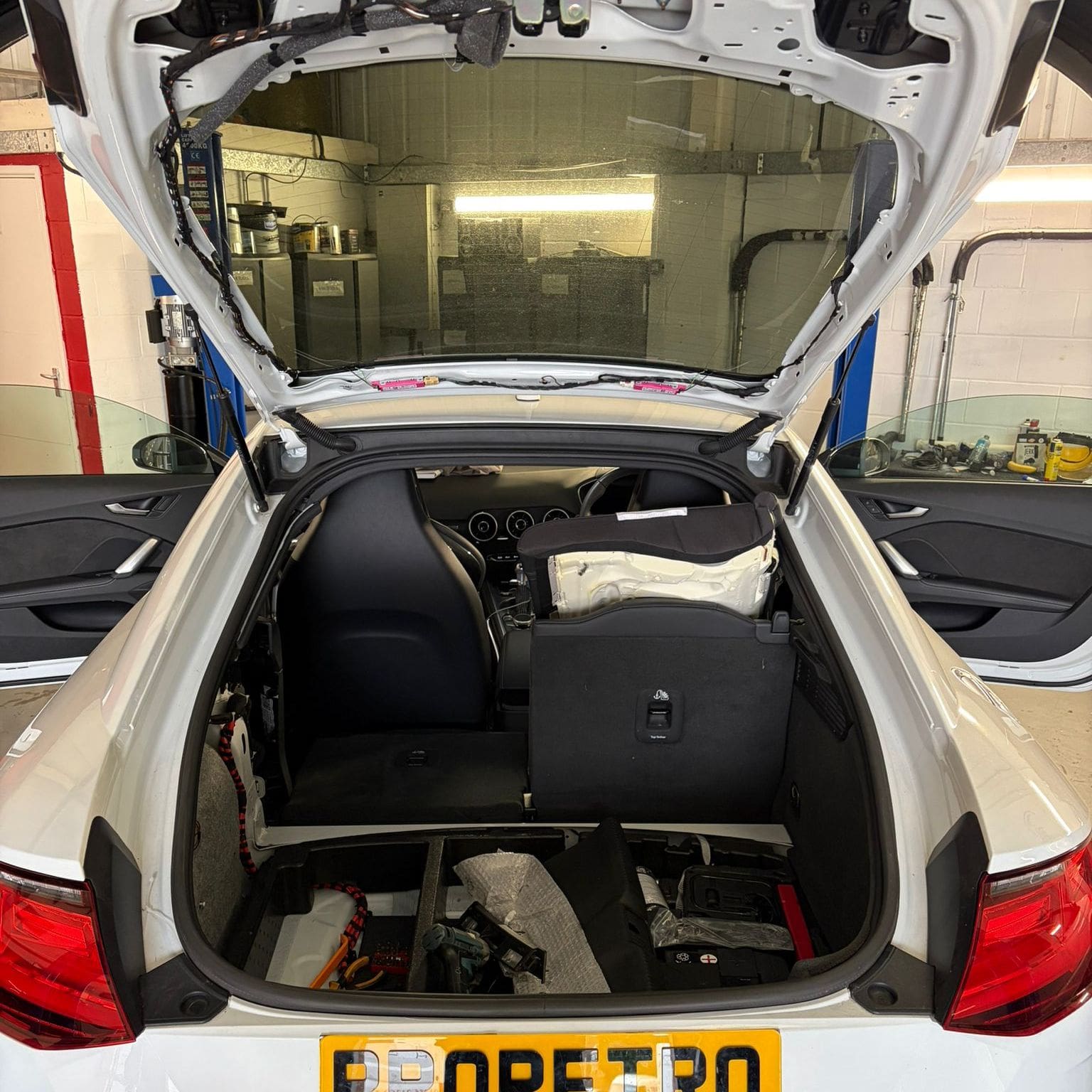

- Tailgate trim removed to access the camera area and route the loom correctly.
- Passenger-side trims removed to create a proper pathway for the wiring run.
- Glove box removed for access and to avoid forcing cables through tight gaps.
- Head unit removed so we could run the wiring properly to the 5F unit.
One small “real world” detail on this TT: it needed a bit of trim/strip work to get the wiring through properly. It’s the kind of thing you only find once you’re in there—and it’s exactly why we don’t rush these installs.
Wiring to the 5F unit
With the interior access sorted, we ran the camera wiring along the passenger side and into the dash area, then into the 5F unit connection point. That’s the difference between “it works” and “it works and stays reliable.”
Throughout the routing, we focused on sensible cable paths and keeping everything tucked away behind factory trim lines. On jobs like this, patience prevents rattles, chafing, and future headaches.
If you’re comparing options, this is why OEM-style camera installs are popular on vag retrofits: the integration can be clean, and the end result feels factory when done properly.
Coding, checks, and FAQ
Coding was completed as the final step, once the camera hardware and wiring were fully in place. That order matters, because it keeps diagnosis simple if anything needs re-checking during installation.
What we verified

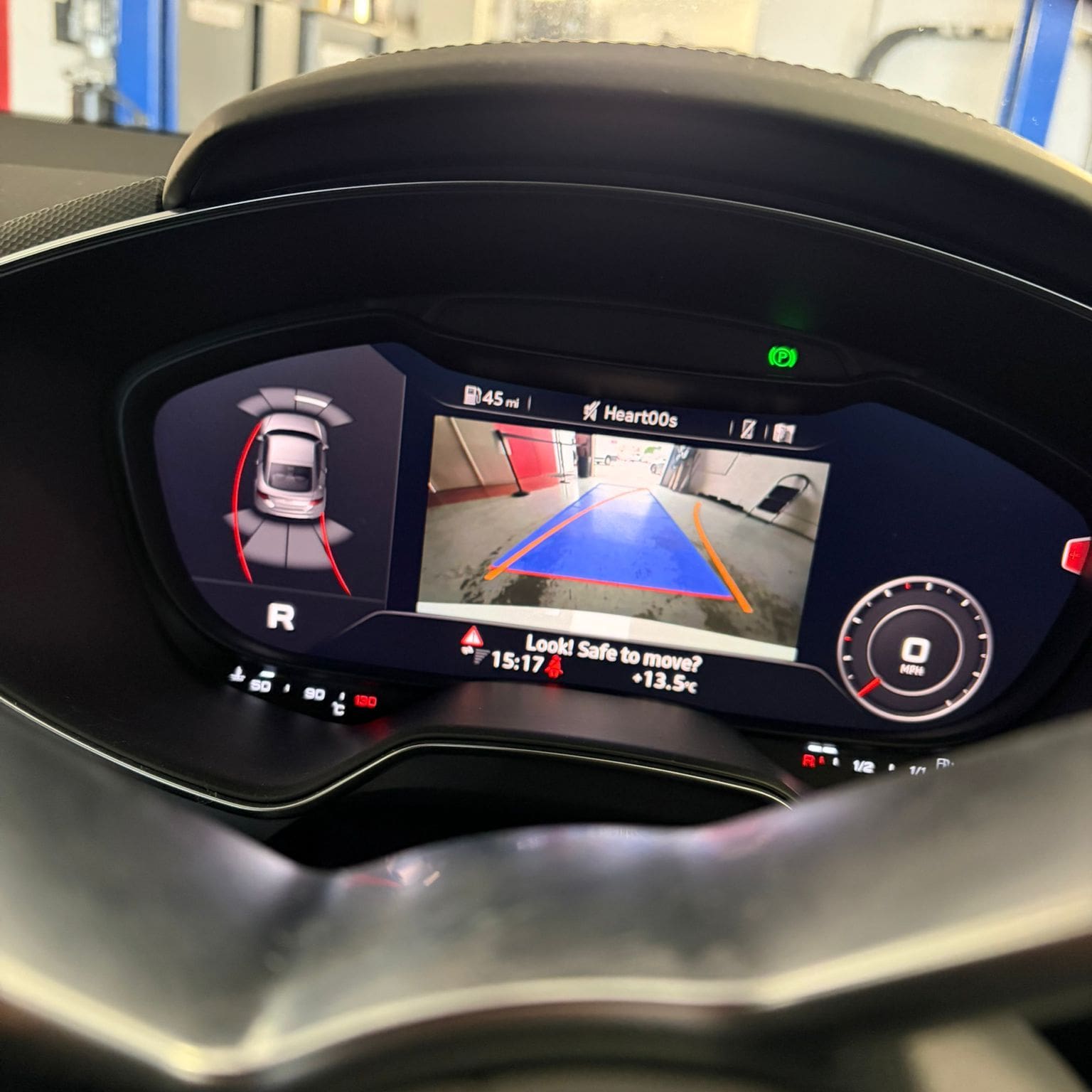

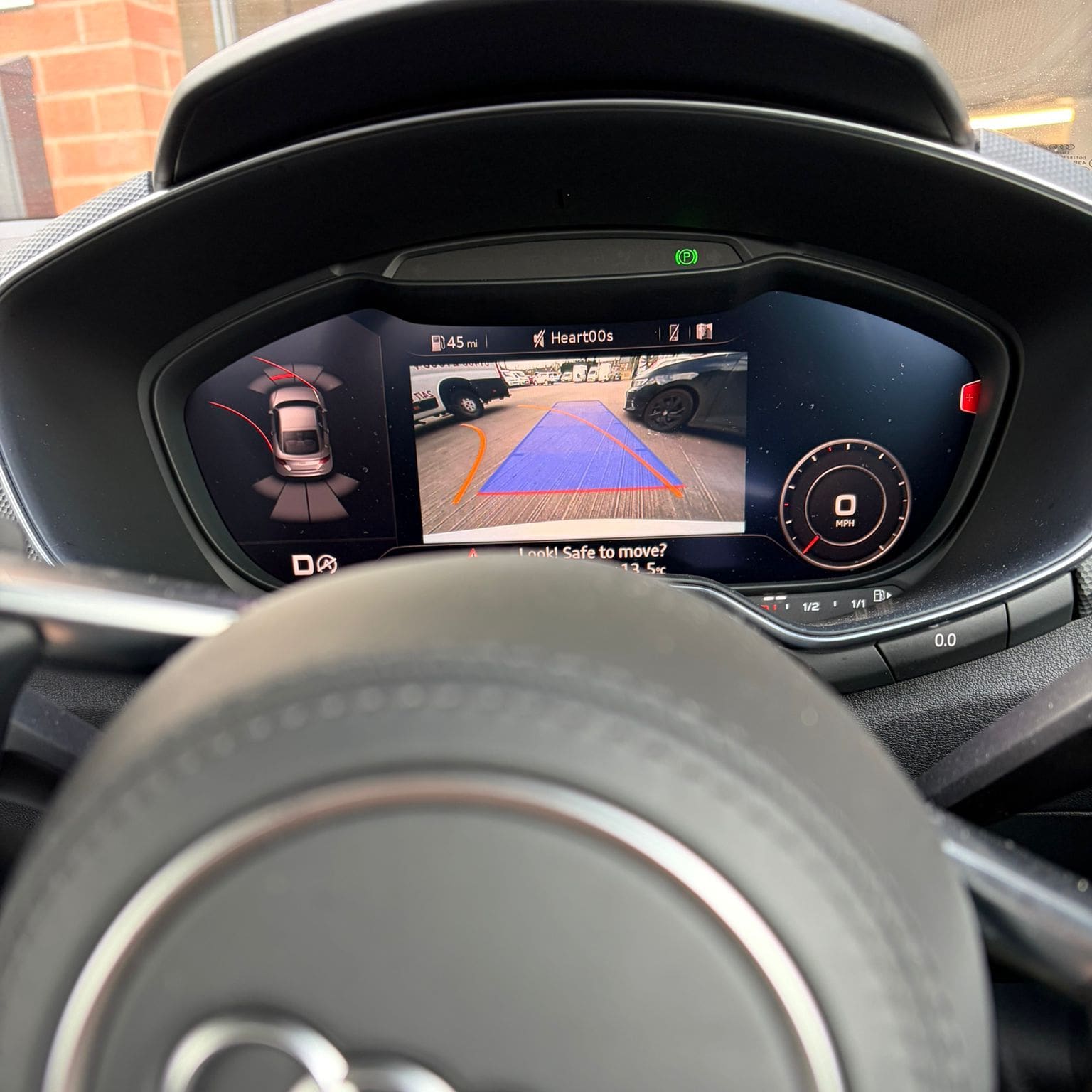

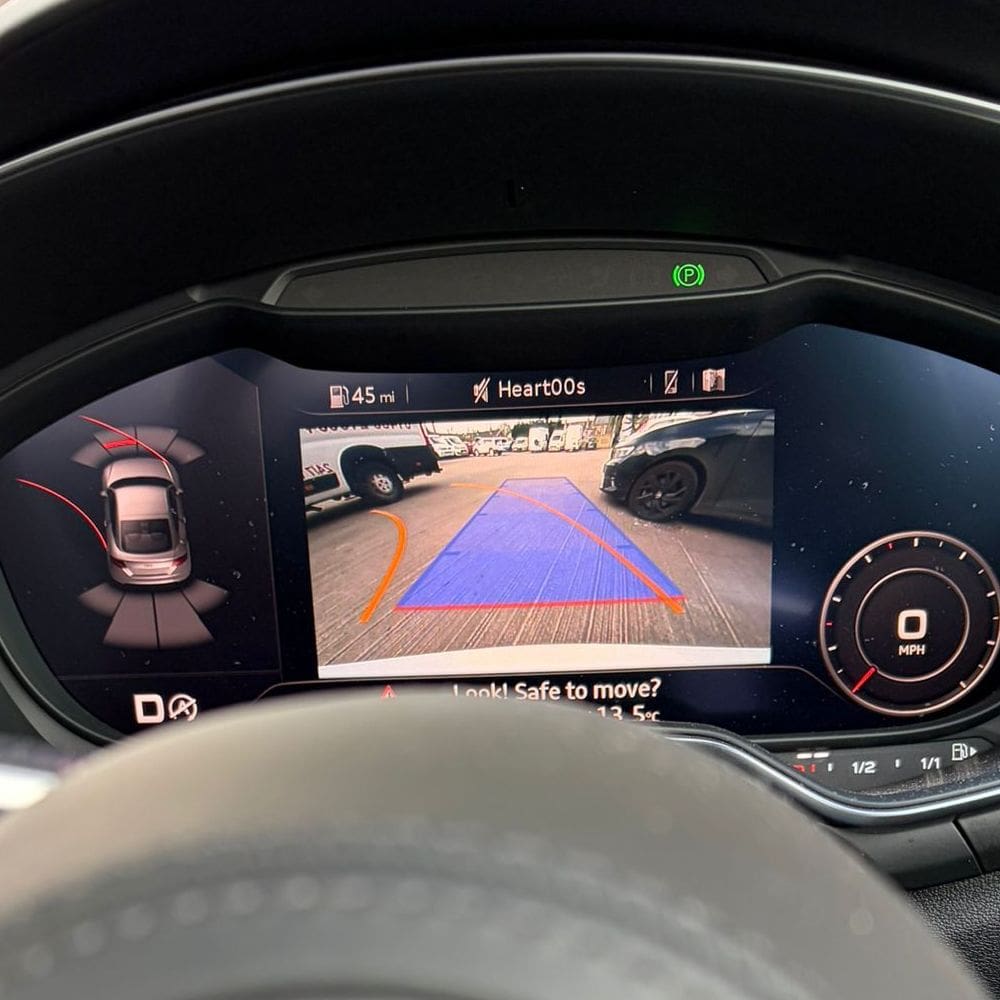

- The camera system powered up and displayed as expected after coding.
- Wiring routes were secure and refitted trims sat correctly after reassembly.
- No trim pieces were left loose after the tailgate, passenger-side trims, glove box, and head unit went back in.
Q: Is this compatible with an Audi TT Mk2 8S?
A: Yes—this project was completed on an Audi TT Mk2 8S using a Highline rear view camera setup integrated to the 5F unit.
Q: How long does an Audi TT rear camera retrofit usually take?
A: This one took approximately 4 hours, mainly due to trim removal and correct wiring to the 5F unit.
Q: Does a rear camera retrofit need coding?
A: Yes—coding was carried out as the last step once the wiring and hardware installation were complete.
Q: What parts of the car need to come apart for this job?
A: On this TT, we removed the tailgate trim, passenger-side trims, glove box, and head unit to route the wiring properly to the 5F unit.
Q: What should I send when requesting a quote?
A: Send your vehicle details (Audi TT Mk2 8S) and a quick note that you want a Highline rear view camera retrofit; photos of the tailgate area and current infotainment setup can also help.
Customers often travel in for retrofit work like this from across the UK; we regularly arrange camera and coding bookings for drivers coming in from Redditch, Leicester, Manchester, London, Leeds, and Edinburgh.
If you want an Audi TT rear camera retrofit done properly—with the trims removed, wiring run cleanly to the 5F unit, and coding finished last—send us a message to plan it in. We can also talk through other OEM-style upgrades while the car is here, especially if you’re traveling in from Redditch for retrofit work.
