Audi TTS Mk2 Front Parking Sensors Retrofit Coded Tested
Audi TTS Mk2 Front OEM Parking Sensors Upgrade Done Right
Job summary
Some upgrades just make sense the moment you drive the car again—this Audi TTS Mk2 front parking sensors retrofit added a full OEM-style front setup with four sensors, proper mounting, and factory-like behavior once coded.
Ever found yourself inching forward into a tight space and wishing the front end had the same confidence as the rear? On this TTS Mk2, we integrated the front sensors so the system works automatically, plus we swapped the required modules and button panel to keep everything neat and OEM-correct.
What was fitted
The kit used a four-sensor front layout, but the important part was how the sensors were mounted and integrated. Because the goal was “OEM, not aftermarket,” we kept the visible finish clean and the wiring route protected.
- Front kit with 4 sensors
- 2 corner sensors color coded and fitted into the painted bumper sections
- 2 center sensors installed using proper OEM Audi grille holders
- Wiring routed inside the bulkhead for a tidy, factory-style run
- Rear-only module replaced to support the upgraded system
- Front and rear module fitted for full integration
- Dashboard button panel replaced with the version that includes the extra P button
Installation and integration
Although sensors look simple from the outside, the “done right” part is everything you don’t see. So, we treated this like a proper OEM integration job: correct holders, correct wiring route, and the right module setup to match.
- Confirmed the front sensor layout and mounting approach (painted corners plus grille-mounted centers).

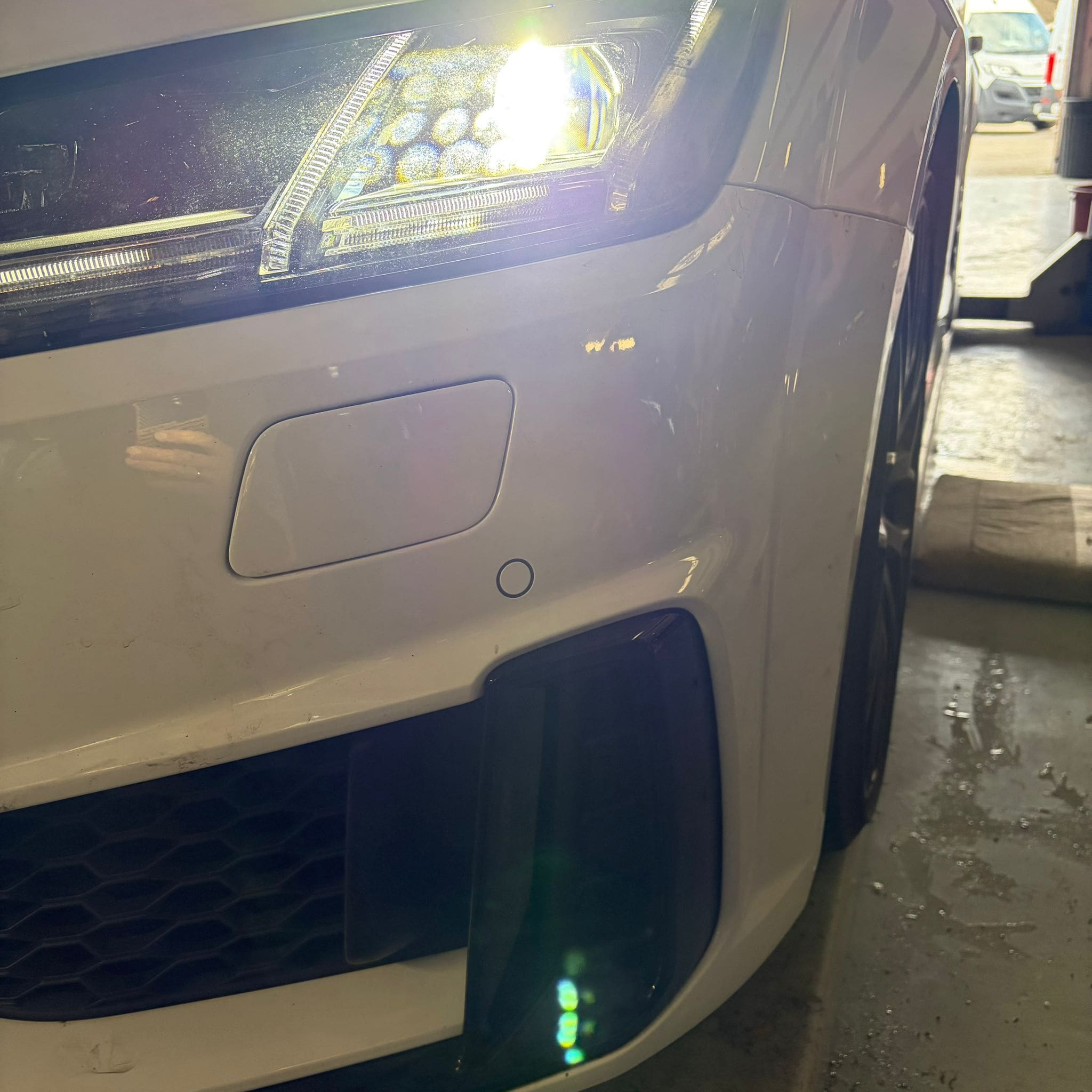

- Installed the two corner sensors, ensuring they were color coded and sat neatly in the painted bumper area.

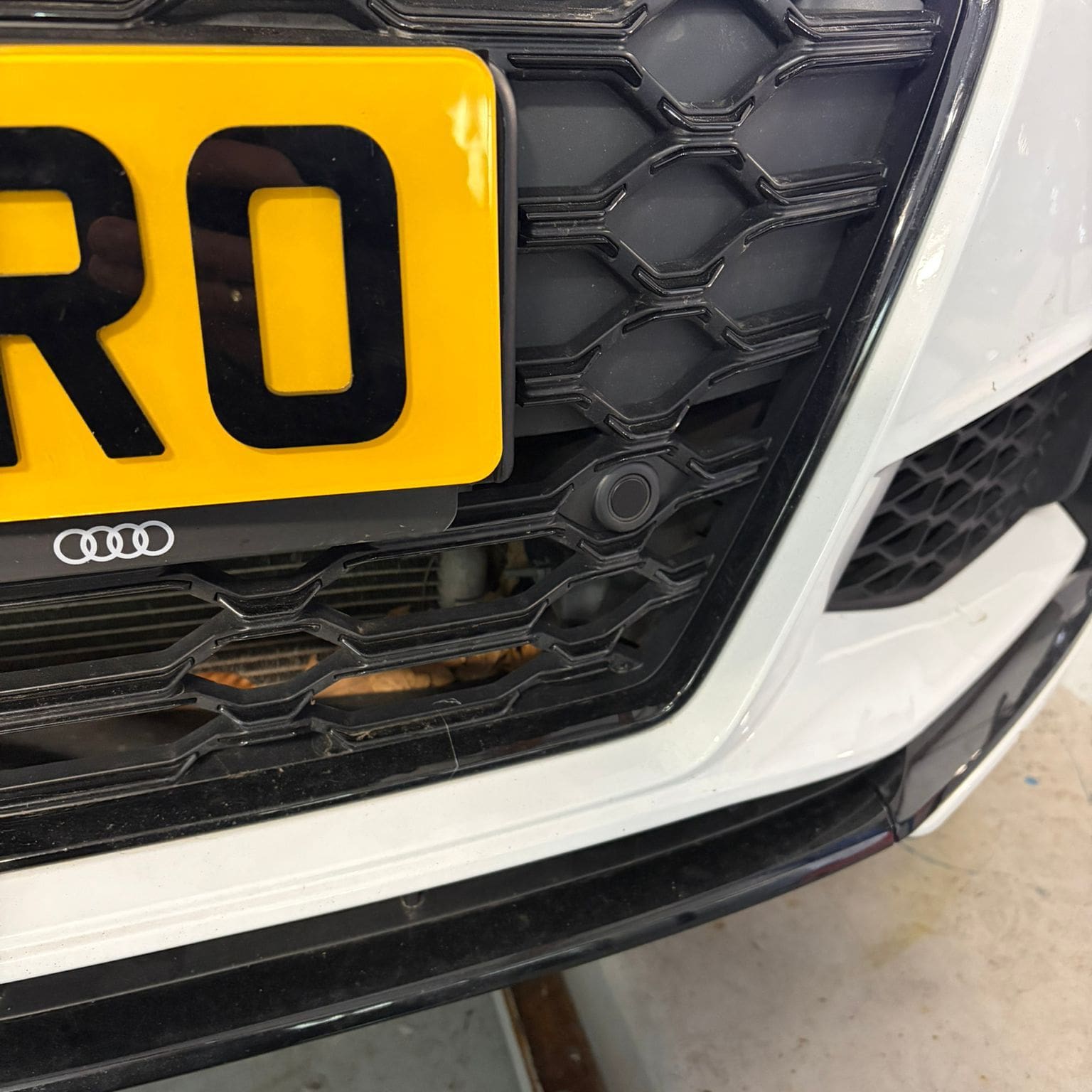

- Installed the two center sensors using OEM Audi grille holders for a factory-style fit.
- Ran the sensor wiring through the bulkhead to keep the loom protected and out of the way.
- Replaced the rear-only module and fitted the required front/rear module arrangement.

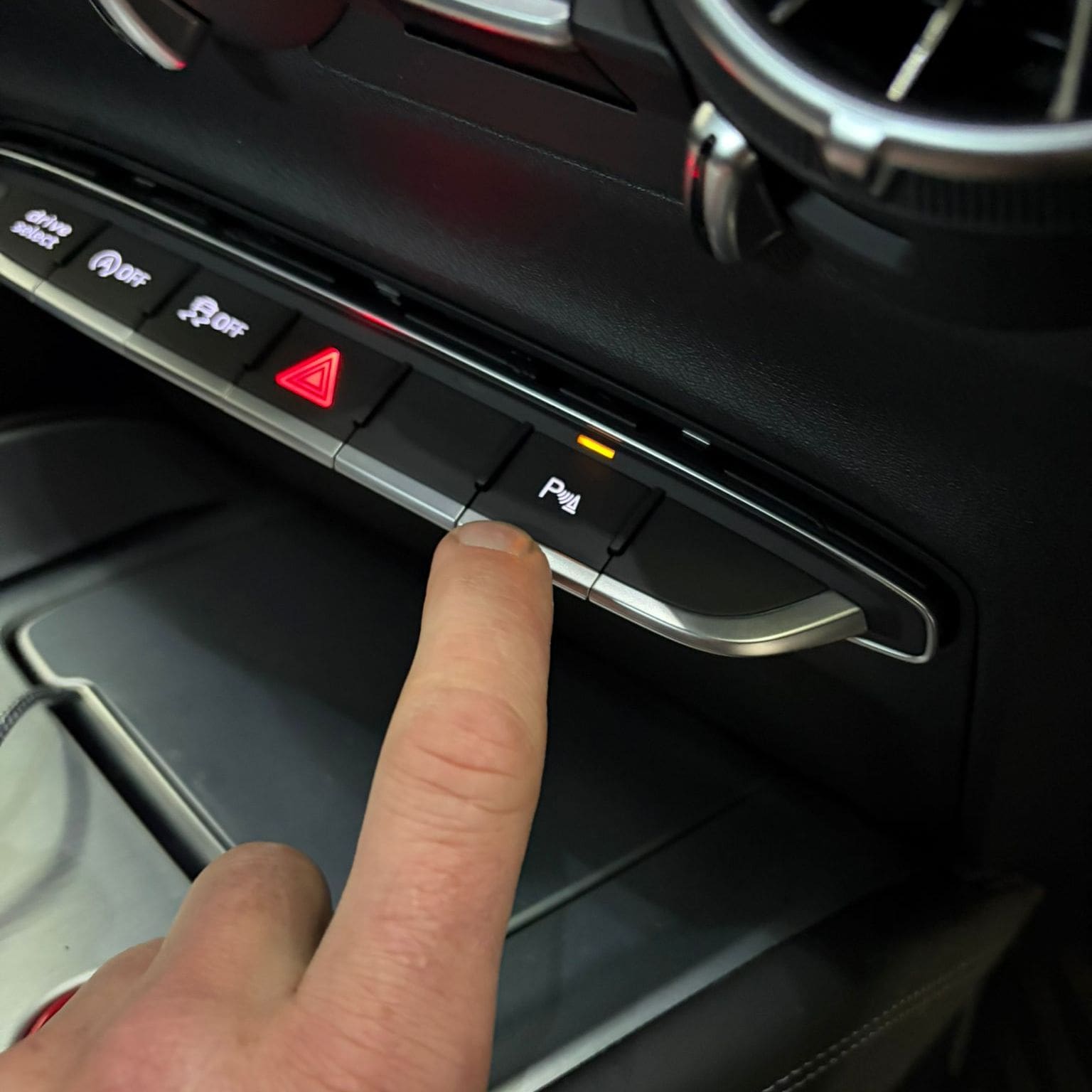

- Replaced the dashboard button panel with the correct panel including the P button.
- Completed coding, then carried out final functional checks.
One nice detail with these vehicles: you don’t actually have to press the button to “make it work.” Instead, the sensors operate automatically, which feels surprisingly smart once you’re used to it.
What we verified

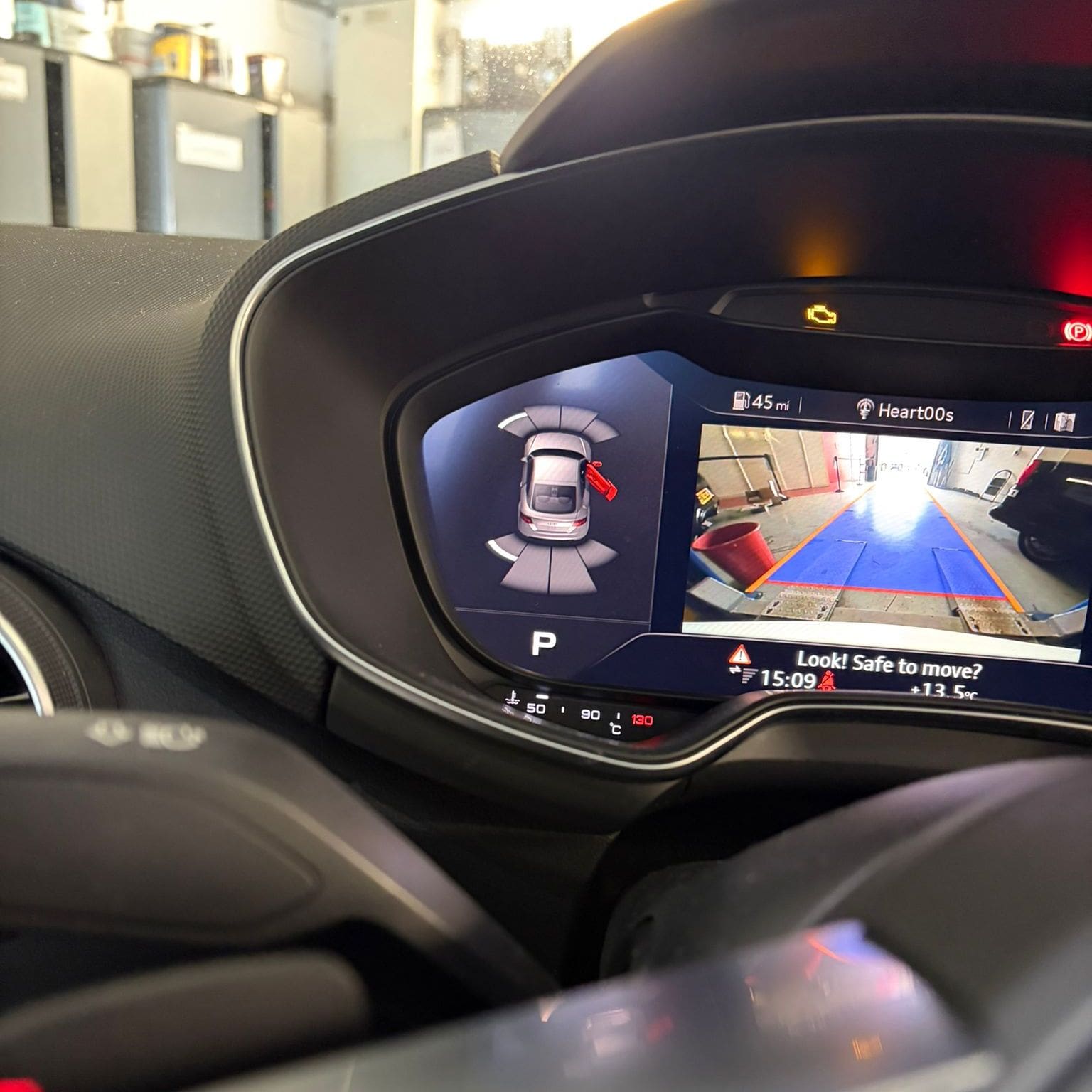

- All four front sensors detected obstacles as expected after coding.
- The system operated automatically without needing the P button pressed.
- The corner sensors sat cleanly in the painted bumper area, while the center sensors sat correctly in the OEM grille holders.
- Modules and button panel functioned correctly after installation and refit.
After the retrofit, the car gained proper front-end awareness in close maneuvers, while still looking like it left the factory that way. That’s why an Audi TTS Mk2 front parking sensors retrofit is one of those upgrades that feels worth every penny once you start using it daily.
FAQ
Q: Is this upgrade OEM-style or aftermarket?
A: This job was completed with OEM-style details: color-coded corner sensors in the painted bumper sections and center sensors mounted in proper OEM Audi grille holders, then coded for integration.
Q: Do you have to press the P button every time?
A: No—on this vehicle the sensors work automatically, so you don’t need to press the button to activate the system.
Q: Does a front parking sensor retrofit require coding?
A: Yes. We coded the car after installation so the modules and sensors operated correctly as a complete system.
Q: Were any modules replaced for this conversion?
A: Yes—the rear-only module was replaced, and a front and rear module setup was fitted to support the upgrade.
Q: What should I send when requesting a quote?
A: Send your vehicle details (Audi TTS Mk2) and what you want added (front OEM parking sensors). If you can, include a quick photo of the front bumper/grille area.
We carry out vag retrofits like this with an OEM-first mindset: correct holders, sensible wiring routes, and coding only once the hardware is right. If you’re browsing ideas, take a look through our other vag retrofits and see what’s possible on your platform.
Customers travel in for upgrades from across the UK; depending on the job, we often see bookings linked to retrofit work around Redditch and Leeds, plus Birmingham, London, Manchester, and Edinburgh.
If you want your own Audi TTS Mk2 front parking sensors retrofit planned and installed neatly, message us to book in—especially if you’re coming from Redditch or Leeds for parking sensor retrofit work and want it integrated and coded properly the first time.
