Mercedes E Class Interior Trim Replacement Installation Repair
Mercedes E Class Interior Trim Replacement With Dashboard And Door Trim Installation
Sometimes a trim swap turns into a proper reconstruction job, and this Mercedes E-Class interior trim replacement was a perfect example. This 2015 Mercedes E-Class import from Japan came in for a full interior trim change across all four doors and the complete dashboard, and although the customer-supplied used trim set looked to be in very good condition, the finished result needed far more than a simple clip-on swap to get the right outcome.
Ever bought used trim thinking it would just pop straight on? In this case, once we inspected the replacement parts, we found they had been pulled off the donor vehicle with the mounting frames and clips left behind, so each supplied trim piece needed extra preparation before it could be fitted properly. Even so, we completed the work within the time allowed, and the cabin now looks far more luxurious and much more in keeping with what you expect from a Mercedes.
Project overview
The customer wanted a full cabin refresh using a used trim set they had sourced themselves. That meant replacing the interior trims on all four doors as well as the complete dashboard trim on this 2015 Japanese import Mercedes E-Class.
At first glance, the parts looked like a straightforward upgrade. However, the donor trims had been removed in a way that left the mounting frames and clips behind, so the job changed from a normal trim exchange into a more involved repair-and-fit process.
Because of that, the work included carefully removing the original mounting frames from the existing trims and then plastic-welding those frames onto every replacement trim piece supplied by the customer, including the dashboard sections. As a result, the Mercedes E-Class interior trim replacement came together properly rather than being rushed or forced into place.
What we found
This vehicle was a 2015 Mercedes E-Class import from Japan, brought in specifically for interior trim replacement. The supplied used trim set was in very good condition cosmetically, which is often the part people focus on first.
However, the hidden issue sat on the back of the trims rather than the visible face. After inspection, it was clear the donor parts had simply been pulled off the original vehicle, leaving the mounting frames and clips behind.
That detail matters because the visible trim alone is not enough for a proper fit. Without the correct mounting structure transferred over, the new pieces cannot be installed as intended, especially across multiple door trims and the full dashboard assembly.
How we handled it
This was not a coding job or an electronic retrofit. Instead, it was careful interior disassembly, assessment of the supplied parts, and precise reworking of the trim hardware so everything could be mounted correctly.
- Customer-supplied used interior trim set in very good condition
- Replacement of all four door trims

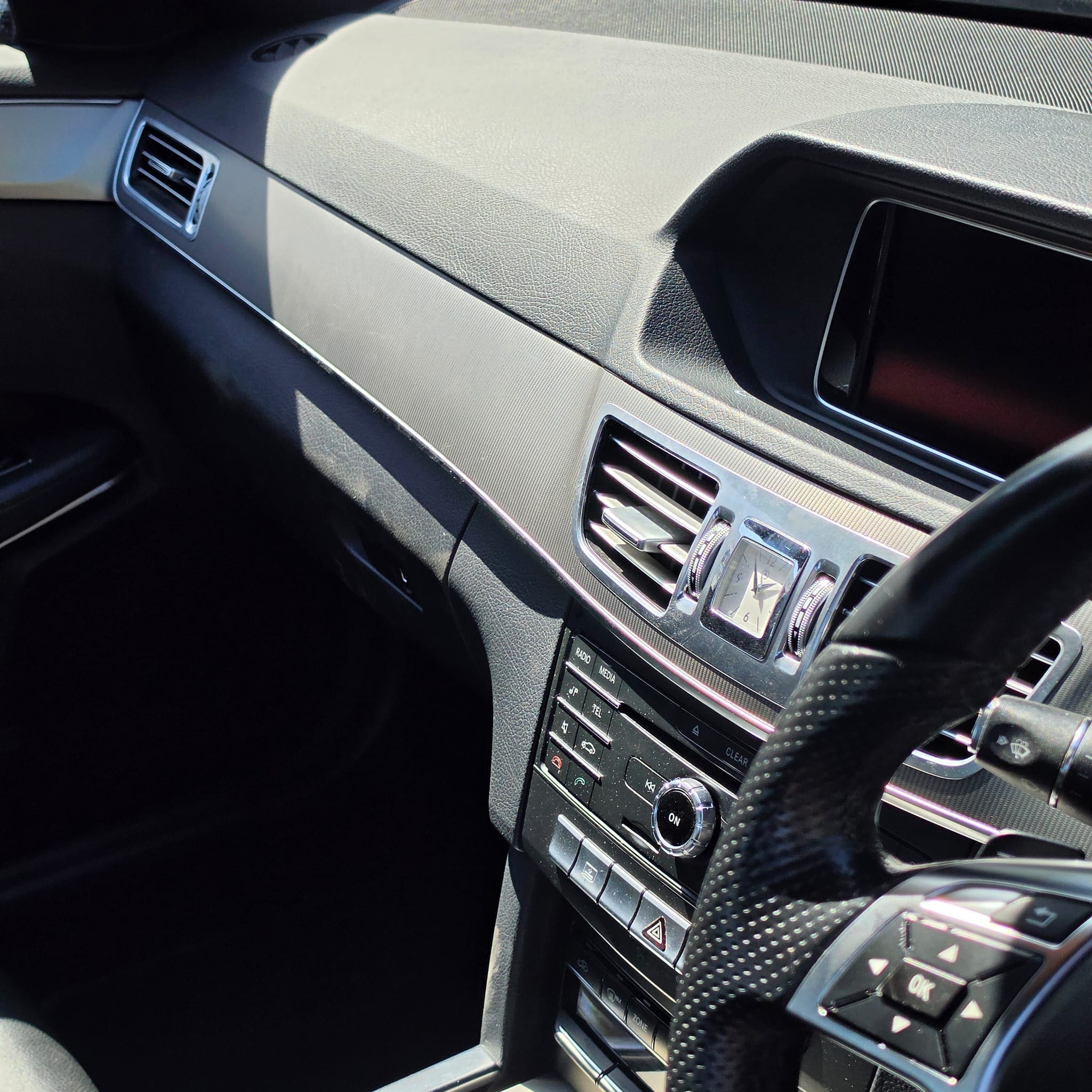

- Replacement of the complete dashboard trim

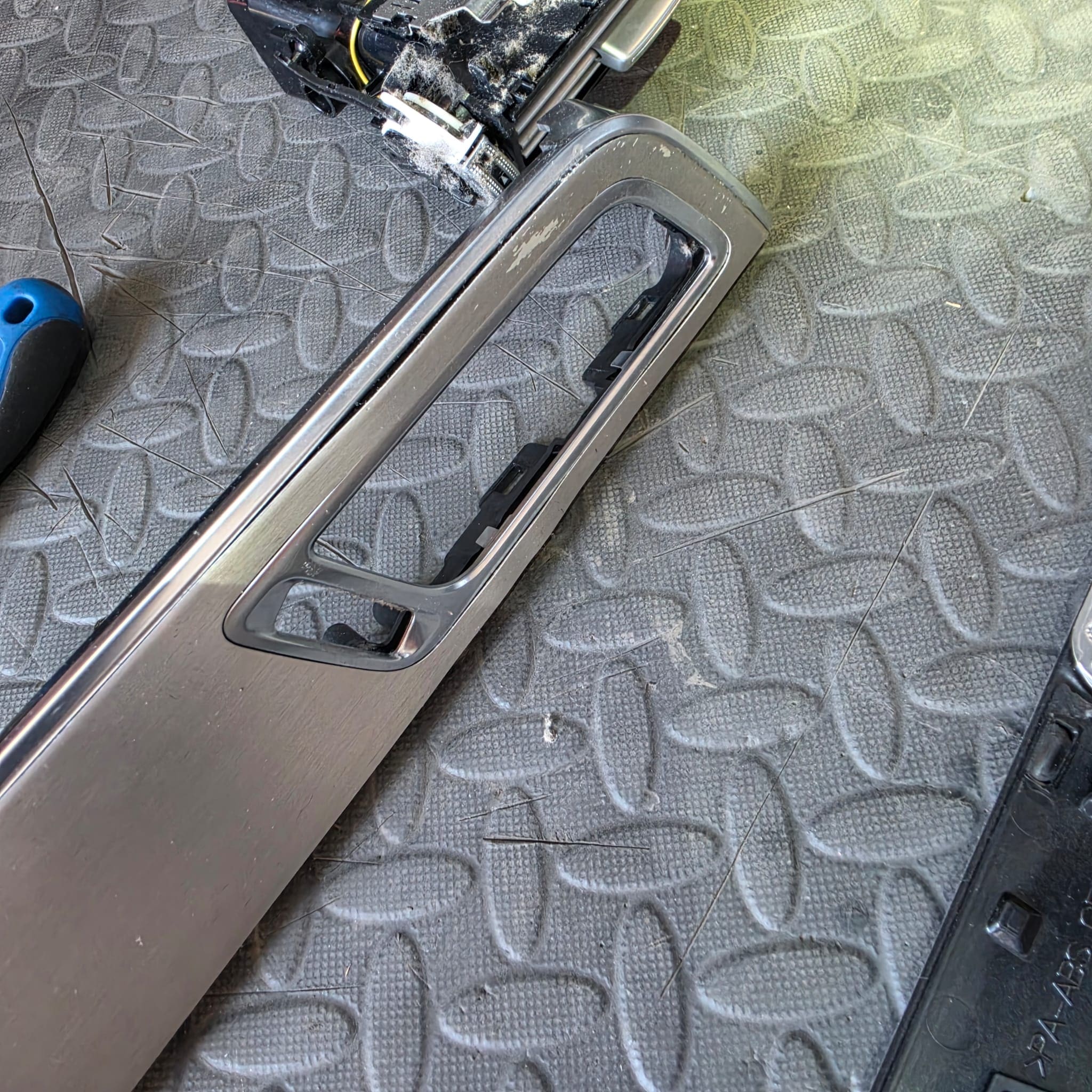

- Removal of original mounting frames from the existing trims
- Transfer of those frames onto the replacement trims
- Plastic welding of mounting frames onto each supplied trim piece
- Careful handling of clips and backing structures during refit
When interior trim work goes well, most of the effort stays hidden. In this case, the unseen structural work behind the trim made the visible upgrade possible.
Step by step

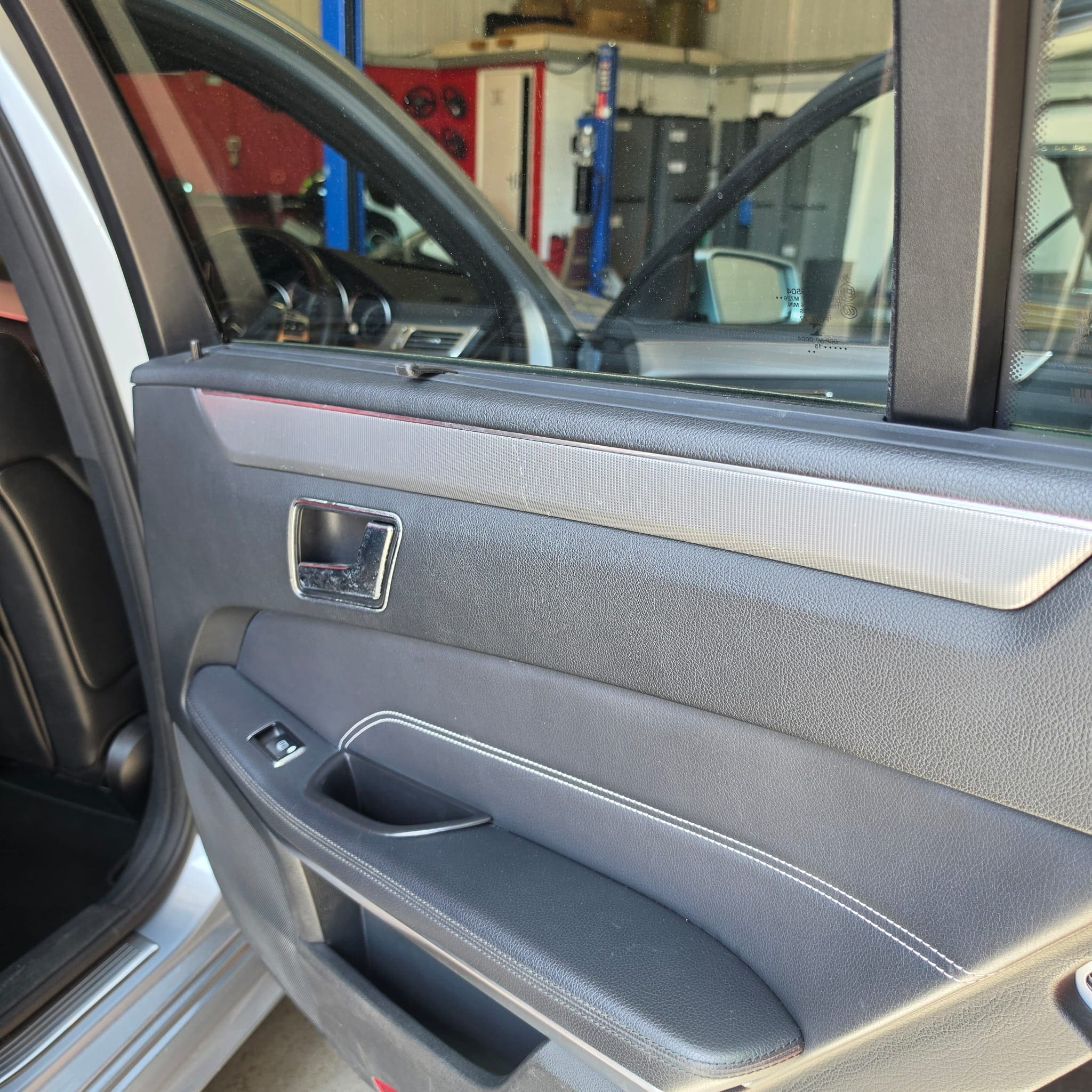

- Removed the existing interior trim pieces from the four doors and dashboard areas with care to preserve the original mounting frames.
- Inspected the customer-supplied replacement trims and confirmed that the donor mounting frames and clips were missing.
- Separated the original mounting frames from the trims already fitted to the vehicle.
- Prepared each replacement trim piece so the original frames could be transferred across correctly.

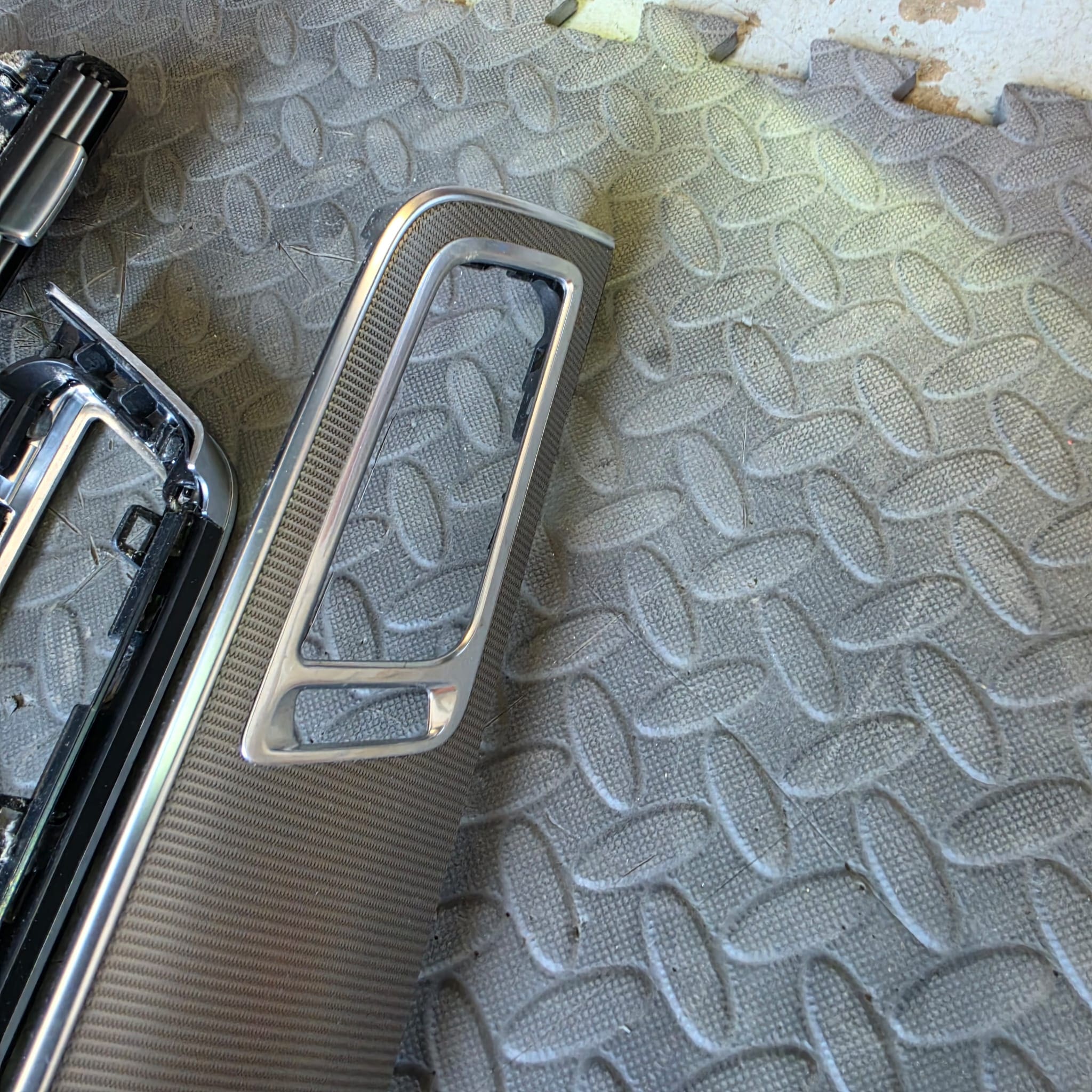

- Plastic-welded the mounting frames onto every replacement trim supplied by the customer, including the dashboard pieces.

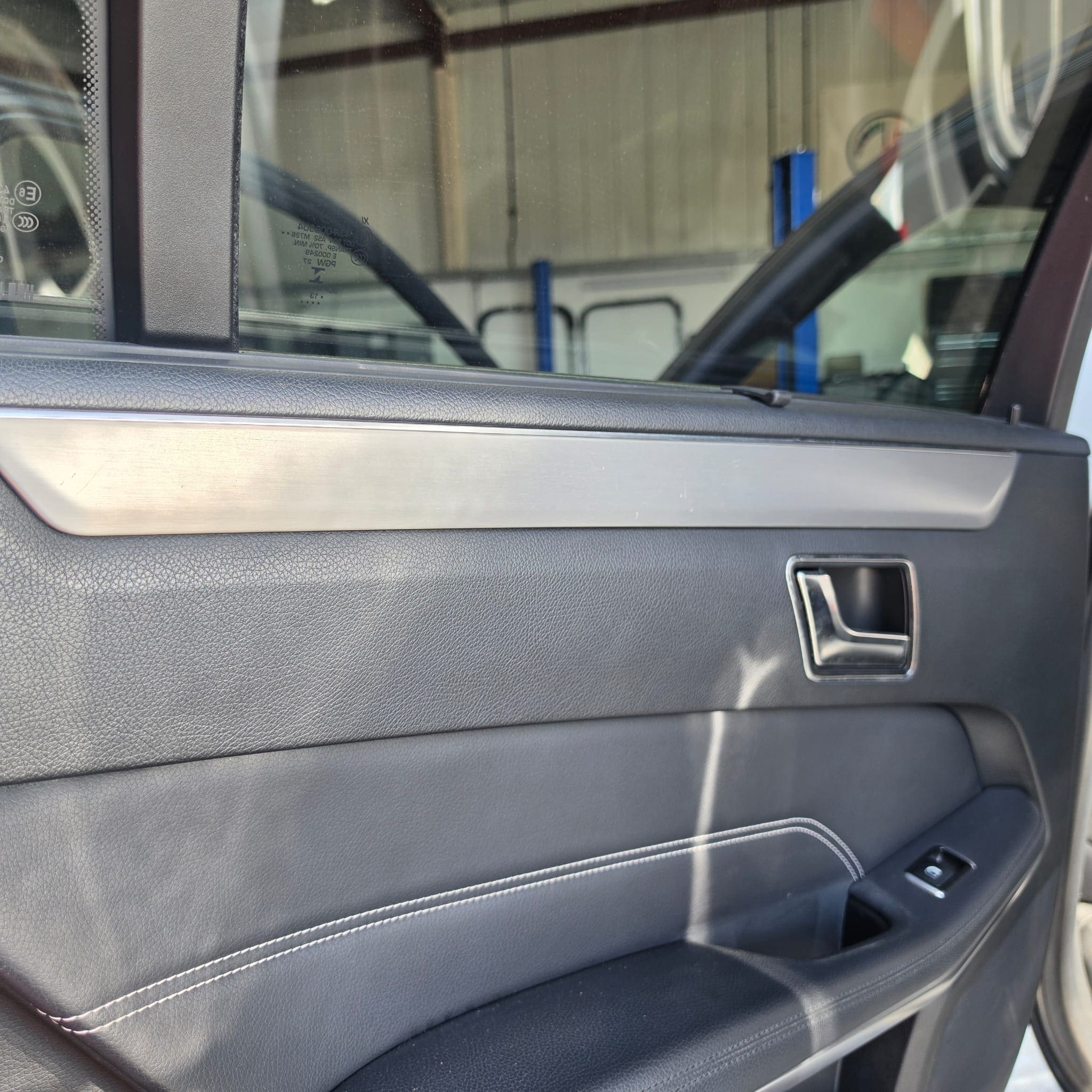

- Installed the reworked trims back into the vehicle and completed the interior refit within the time allowed.
What we verified: we confirmed that the replacement trims had the required mounting frames transferred over, that the reworked pieces could be fitted correctly, and that the completed interior looked substantially more premium than before. Just as importantly, the job was finished within the booked time despite the extra work discovered after inspection.
Quick FAQ
Q: What vehicle was this trim job carried out on?
A: It was a 2015 Mercedes E-Class import from Japan.
Q: What parts were replaced?
A: All four door trims and the complete dashboard trim were replaced using a customer-supplied used trim set.
Q: Why was the job more involved than expected?
A: The donor trims had been removed by pulling them off, so the mounting frames and clips were left behind on the original donor vehicle.
Q: Was coding or warning light work needed?
A: No coding or warning light work was specified for this project. The main challenge was the physical trim preparation and frame transfer.
Q: What should I send if I want a quote for similar work?
A: Send your vehicle details, a few photos of the trims, and whether you already have the replacement parts, especially if you are planning a Mercedes E-Class interior trim replacement or similar interior retrofit job.
Need help with trim work
If you are planning interior trim changes, it is always worth checking the back of used parts as closely as the front. A clean-looking trim piece can still need a lot of hidden work before it is actually ready to fit.
We regularly help with jobs like this when customers travel in for interior repair and retrofit work from Redditch, Birmingham, London, Leeds, Manchester, and Edinburgh. So if you need help with a Mercedes E-Class interior trim replacement, dashboard trim fitting, or used trim preparation, feel free to get in touch and explore more of our project work.
