VW T6 and T6.1 Heater Stuck Hot or Cold Repair
When the cabin temp won’t budge and the vents feel “stuck,” it’s rarely the controls—this VW T6 heater flap repair focused on restoring proper temperature control by fixing a failed blend flap actuator setup on a VW Transporter. In this case, the heater motor didn’t stop, forced itself out of its brackets, and snapped the flap linkage (including a previously fitted 3D-printed linkage), leaving the system unable to regulate hot/cold properly.
We’re seeing this fault pattern more and more on T6 and T6.1 vans, and it usually shows up as “heater stuck on hot,” “no hot air,” or “no cold air.” Have you ever heard clicking or constant movement behind the dash while the temperature stays exactly the same?
Symptoms we see often
On VW Transporter T6 and T6.1 models, a common cause of climate control complaints is failure in the heater flap linkage / blend flap actuator system. Customers typically describe it in plain terms, such as:
- “VW T6 heater stuck on hot”
- “VW T6 no hot air”
- “VW T6 no cold air”
- “VW T6 climate control not working”
- “VW T6 heater not changing temperature”
- “VW T6 airflow stuck”
Most of the time, the underlying issue is mechanical/electrical at the heater box: a broken heater flap linkage, a snapped actuator arm, or a failed blend door motor (heater motor / flap motor). Because the motor can keep trying to move a flap that’s jammed or disconnected, the problem often escalates rather than settling down.
What failed on this van
This specific VW Transporter came in with a temperature control system that couldn’t do its job. After inspection, the failure was clear: the heater motor failed to stop, pushed itself out of the mounting brackets, and snapped the linkage at the same time.
Notably, the linkage that broke included a 3D-printed linkage that had been fitted previously. While some “quick fixes” look fine at first, they can become the weak point when the actuator starts over-traveling or fighting a stuck flap.
Because this is a VAG platform job, we approach it the same way we handle vag retrofits work: confirm the fault, correct the hardware problem, and then make sure the system behaves correctly afterward. That same mindset is why vag retrofits and diagnostics pair so well on these vans—guessing gets expensive fast.
Repair approach and parts
We’ve now carried out several of these repairs across VW T6 and T6.1 vans. Depending on what’s damaged (and what’s been modified previously), repairs commonly involve:
- Repairing or replacing the heater flap linkage

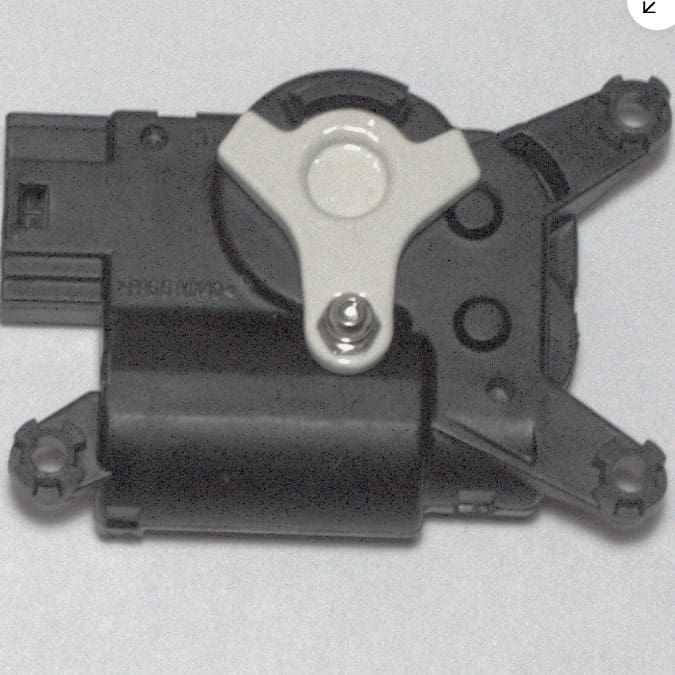

- Repairing or replacing the blend flap actuator
- Repairing or replacing the heater motor / climate control motor
- Correcting broken or modified linkage setups so the flap can move through its proper range

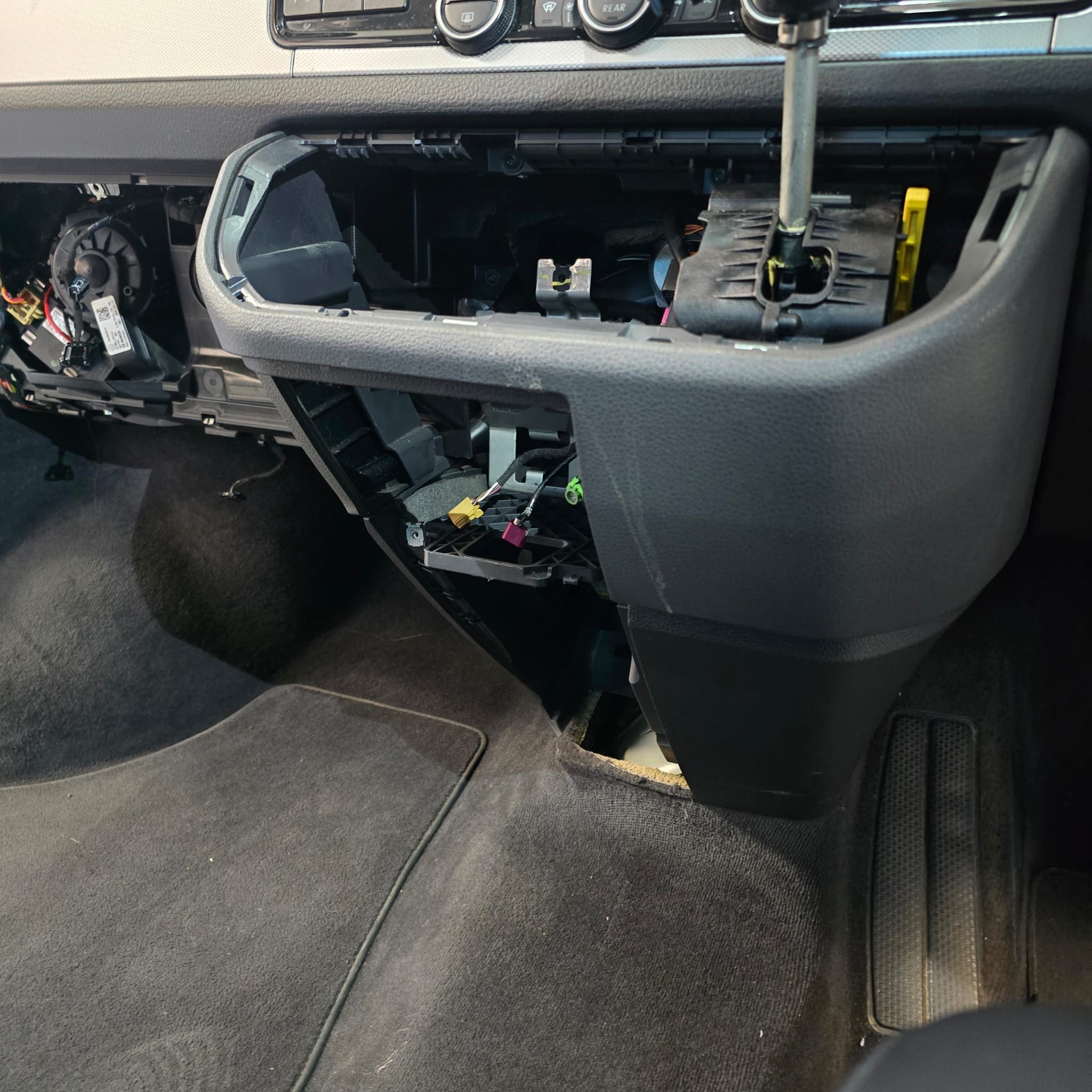

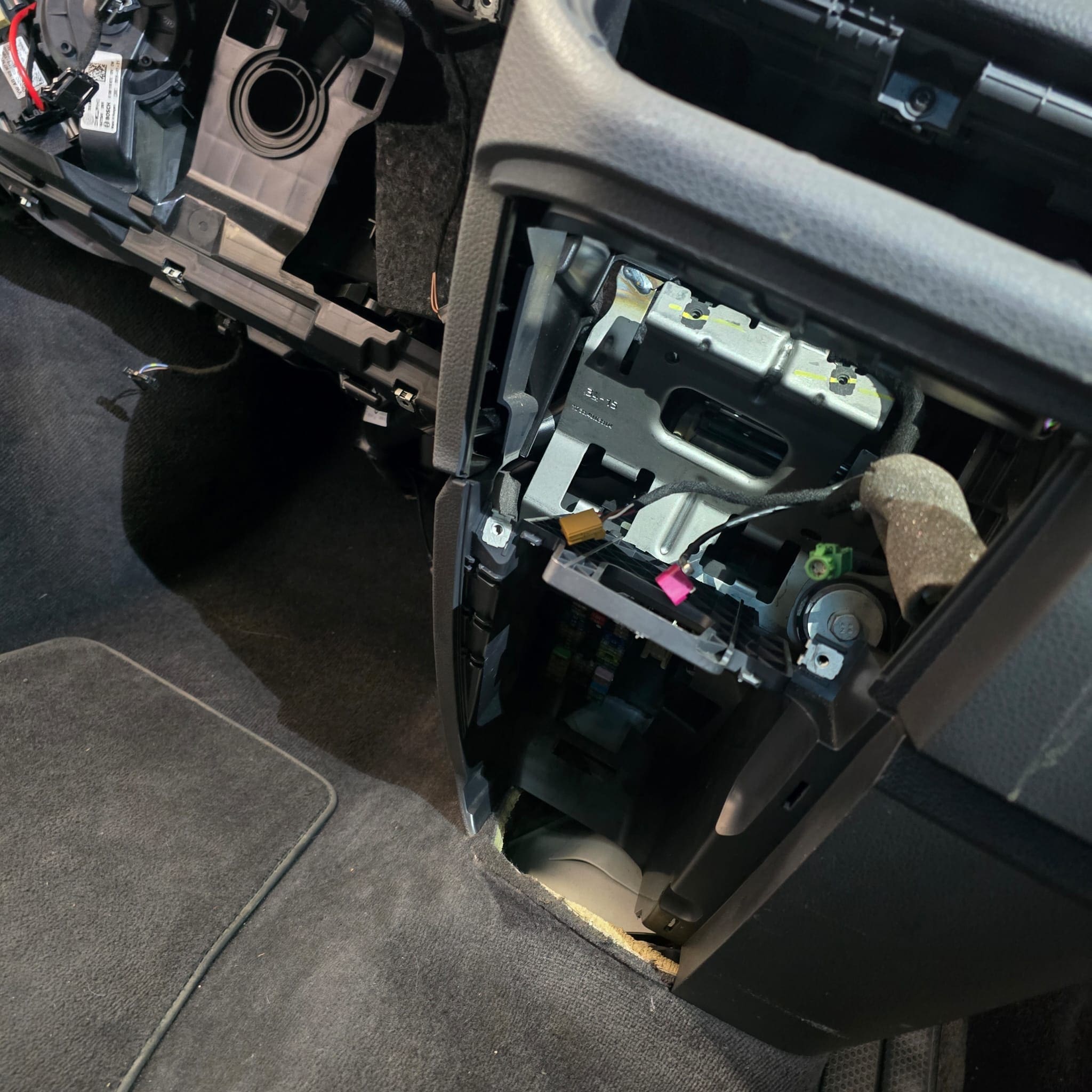

- Careful trim and access work to reach the actuator area without creating new rattles or broken clips
One important note from experience: avoid cheap, poorly made linkage kits. Even when they “fit,” the materials and tolerances often don’t last, and then you’re paying for the same job twice.
Diagnostics, checks, and sign-off
After the physical fault is addressed, the key is making sure the system can actually control temperature again and that nothing is still trying to overrun. Since this type of failure can worsen over time, we take a cautious, step-by-step approach rather than forcing movements.
- Confirmed the reported behavior: temperature not changing as commanded and/or airflow behavior not matching settings.

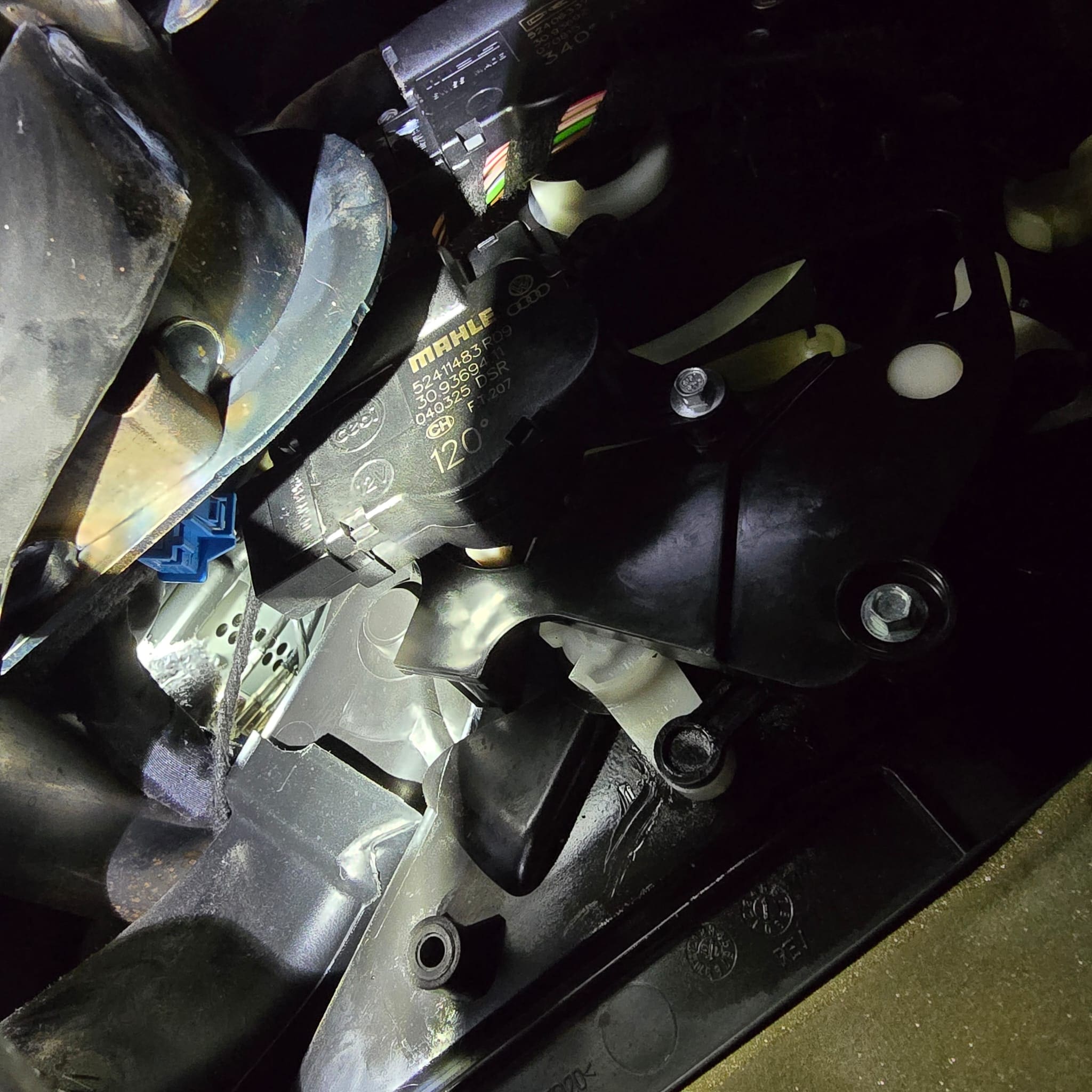

- Accessed the heater box actuator area and inspected the linkage, actuator arm, and mounting points.
- Identified the actuator motor issue (motor not stopping) and the resulting damage (motor forced out of brackets, linkage snapped, including the 3D-printed piece).

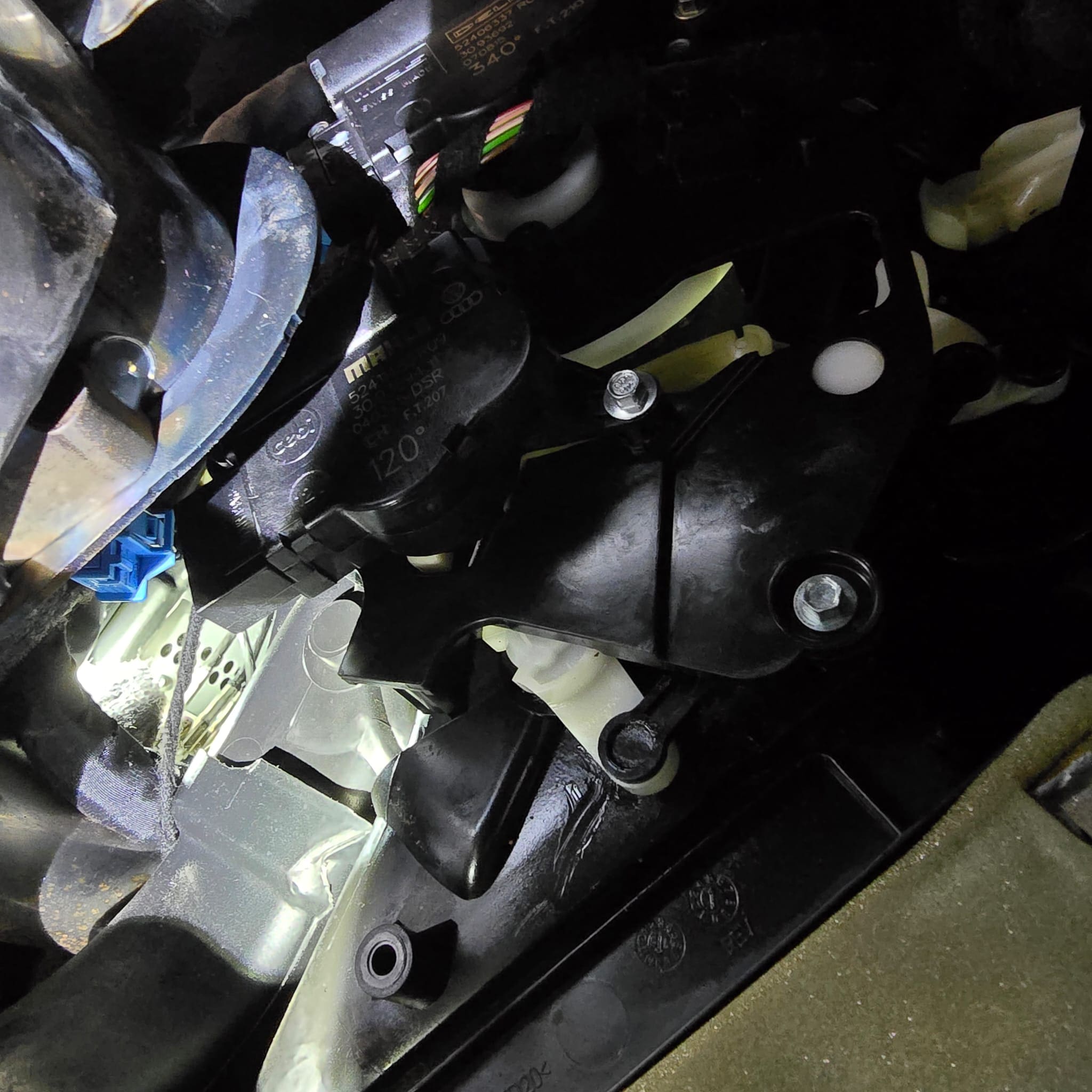

- Repaired/replaced the failed components as required to restore correct mechanical connection between actuator and flap.

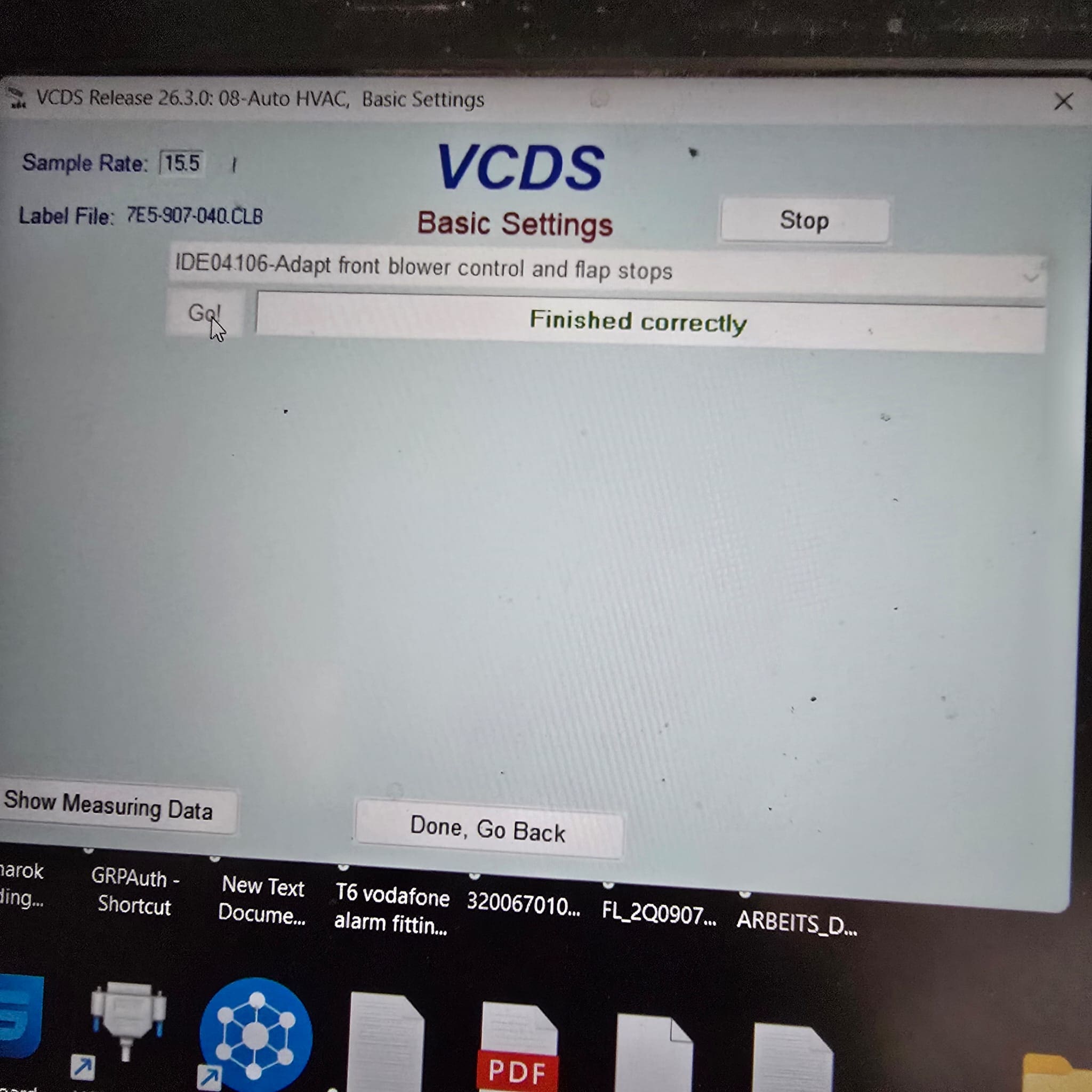

- Checked for smooth, controlled flap movement through the temperature range, watching for binding or over-travel.
- Listened for abnormal clicking/continued movement that would suggest the motor is still hunting or the flap isn’t following.
What we verified: the actuator was securely mounted, the linkage was intact and correctly engaged, and the temperature control could change as commanded rather than staying stuck on hot or cold.
For owners chasing the same symptoms, this is exactly why a proper VW T6 heater flap repair matters—if the motor keeps driving against a disconnected flap, the damage can spread beyond the original weak point.
Quick FAQ
Q: Is this issue common on VW T6 and T6.1 vans?
A: Yes—heater flap linkage / blend flap actuator failures are showing up frequently, and the symptoms often sound like “stuck on hot,” “no hot air,” or “no cold air.”
Q: What usually breaks first: the motor or the linkage?
A: Either can fail. In many cases it’s a broken linkage or actuator arm; on this van the heater motor didn’t stop and physically forced itself out of the brackets, snapping the linkage.
Q: My van clicks behind the dash—does that match this fault?
A: It can. Clicking or repeated movement can happen when the actuator keeps trying to move a stuck or disconnected flap.
Q: Should I fit a cheap linkage kit to save money?
A: We recommend avoiding low-quality linkage kits because they often fail quickly. If the motor is still trying to move a jammed/disconnected flap, weak parts tend to break again.
Q: What should I send when requesting a quote?
A: Tell us whether it’s T6 or T6.1 and describe the symptom (stuck hot, stuck cold, no temp change, clicking behind dash). That helps us plan the correct diagnostic path.
Although this post is based on one real Transporter repair, the same heater flap and actuator faults bring in vans from across the UK for diagnosis and specialist work. If you’re comparing options, it’s worth browsing other projects to see how we approach fault-finding when a “simple part swap” doesn’t address the root cause.
If your van needs a VW T6 heater flap repair and you’re chasing stuck-hot/stuck-cold temperature control, get in touch—customers regularly travel in for this kind of climate control repair work from Redditch and Edinburgh, as well as London, Manchester, Leeds, and Birmingham.
